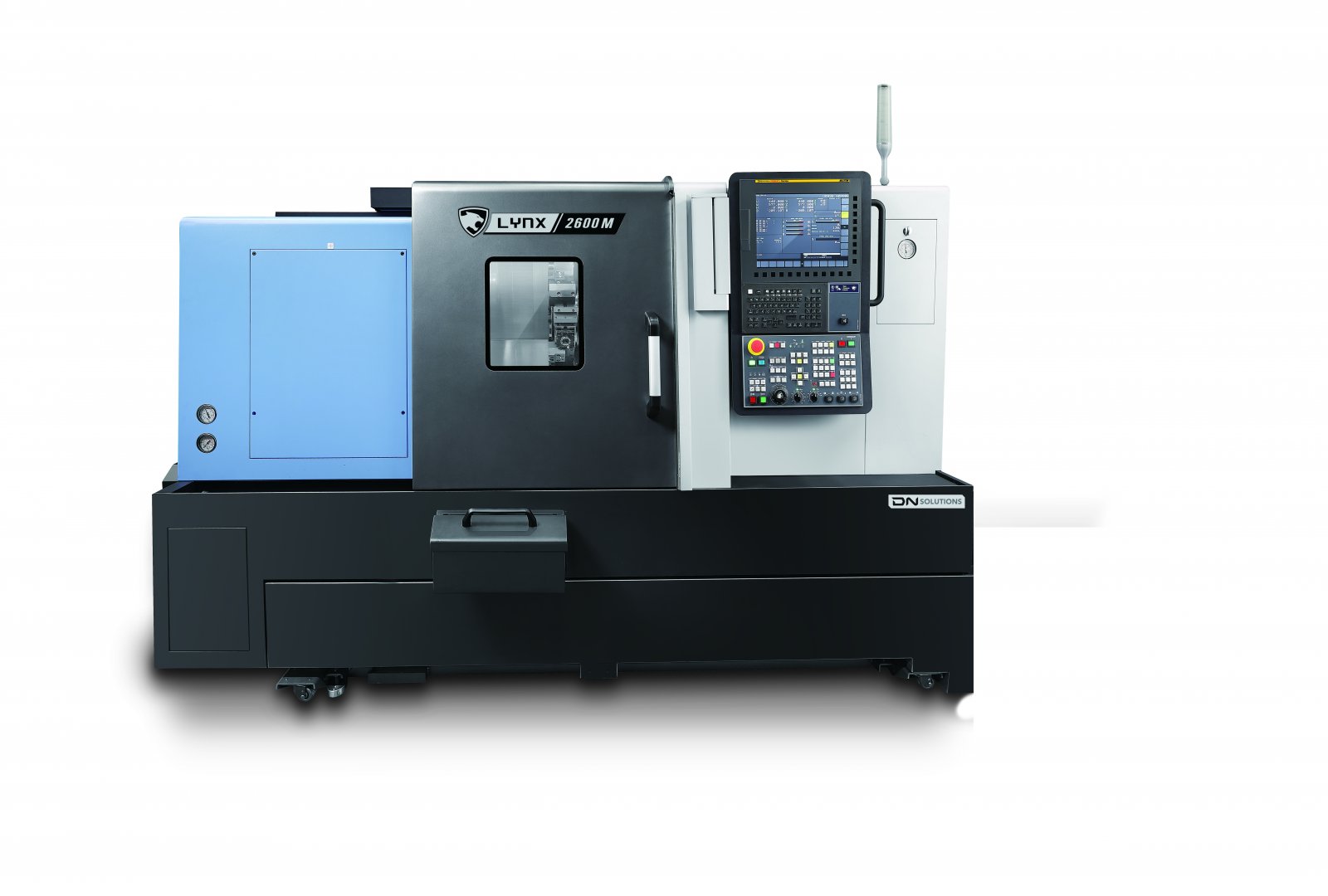

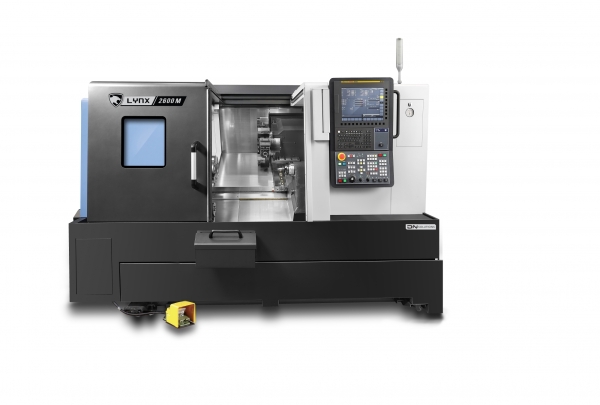

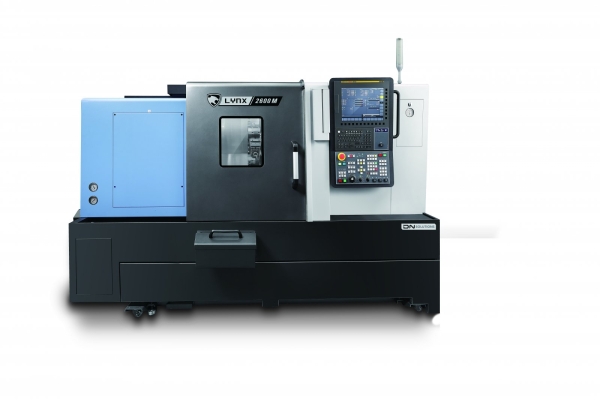

Lynx 2600M DN Solutions Turning Centers
LYNX 2100/2600 Series
6''~10'' High Performance Compact Turning CenterThe newly designed LYNX 2100 and LYNX 2600 2-axis horizontal turning centers have a small footprint but deliver huge productivity gains.The machines are tough,reliable and get down to business fast.
Superior Machining Performance
- Equipped with a 15kW high-power motor (LYNX 2600Y/SY : 18kW)
- Max. Turning diameter : 300mm / Max. Turning length : 510mm
(LYNX 2600Y/SY : 380mm / 610mm)
- Excellent cutting capability
High Reliability
- Low vibration / noise spindle
- Full slideway cover yo prevent leakage and chip ingress
.jpg)
Improved User Experience
- EOP (Easy Operation Panel)- Grease type lubrication
- Rear side double-purpose chip conveyor
SPECIFICATIONS
CAPACITY
Chuck size - 10 inch
Max.turning diameter - 380 mm
Max.turning length - 610 mm
TRAVELS
X-axis rapid traverse - 30 m/min
Z-axis rapid traverse - 30 m/min
X-axis travel distance - 255 mm
Z-axis travel distance - 680 mm
MAIN SPINDLE
Max.spindle speed - 3500 r/min
Max.spindle power - 18.5 kW
Max.spindle torque - 403 N.m
TURRET
No.of tool station - 12 ea
Rotary tool - 6000 r/min
DIMENSIONS
Length - 3290 mm
Height - 1790 mm
Width - 1778 mm
Weight - 4800 kg
